Motion Detection & Email Alert & Human Tracking
The smart motion detection helps you keep close eye on every movement happened in your home and office.And yoursquoll get instant alarming email with images captured when the home or office is invaded.
Real-time two way audio communication
Camera has built in microphone and speaker.
Never miss a moment with your family.

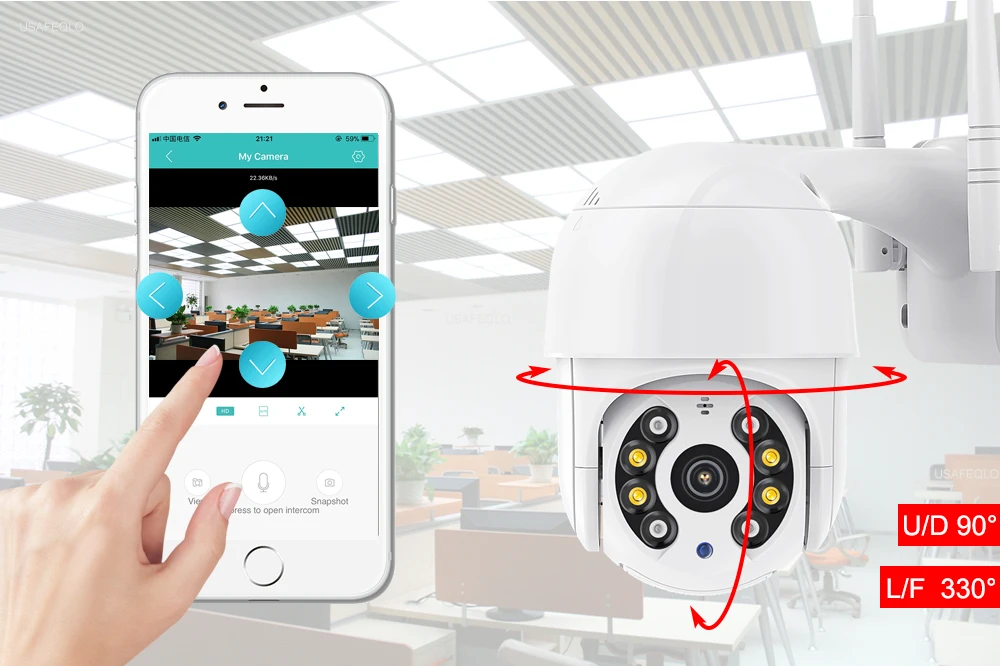

Smooth pan and tilt monitoring
Smooth 330 degree pan allows you to enjoy a sweeping view of the entire room.Control the movements of the camera. head on your phone to see whatever you wan to see.
IP66 Waterproof / Dustproof
The camera case is made of high-quality ABS plastic, which is waterproof,sun-proof and dust-proof. It is suitable for any environment .
4G Model
Your camera can work within the range of 3G/4G, it is easy to access the network environment.(not support WI-FI network)
Because of the Janpan,USA,Australia,Canada,Moxico,Brazil,Chile 4G Frequency band not the same as Euro,The PCB of the Board size will bigger, So we will send the bigger case of the camera instead.
Ai Humanoid Detection
Smart Ai Detection function , support mixing line, area, two-way flow detection, for human form, easy setting in App
|
Standard |
4G FDD-LTE |
4G TDD-LTE |
3G WCDMA/TD-SCDMA |
2G(EDGE)(GSM) |
Applicable country |
||||
|
EURO |
B1 |
2100MHZ |
B38 |
2600MHZ |
B1(wcdma) |
2100MHZ |
900MHZ |
Africa, Europe, Asia |
|
|
B3 |
1800MHZ |
B40 |
2300MNZ |
B8(WCDMA) |
900MHZ |
1800MHZ |
|||
|
B7 |
2600MHZ |
B41 |
2500MHZ |
||||||
|
B8 |
900MHZ |
||||||||
|
B20 |
800MHZ |
||||||||
|
USA |
B1 |
2100MHZ |
B2(wcdma) |
1900MHZ |
900MHZ |
South America, North America |
|||
|
B2 |
1900MHZ |
B5(wcdma) |
850MHZ |
1800MHZ |
|||||
|
B4 |
1700MHZ |
B4(wcdma)1700MHZ |
1700MHZ |
||||||
|
B12 |
700MHZ |
||||||||
|
B13 |
700MHZ |
||||||||
|
AUS |
DEDICATED |
||||||||
|
JAPAN |
B1 |
2100MHZ |
B41(TDD) |
2500MHZ |
Japanese market |
||||
|
B3 |
1800MHZ |
B1(wcdma) |
2100MHZ |
||||||
|
B8 |
900MHZ |
B6(wcdma) |
800MHZ |
||||||
|
B18 |
850MHZ |
B19(wcdma) |
800MHZ |
||||||
|
B19 |
800MHZ |
||||||||
|
B26 |
850MHZ |
||||||||
|
Model
|
USA-4G-A8
|
||
|
Camera
|
Operating system
|
Embedded Linux OS
|
|
|
Processor Sensor
|
XM530+2235/XM535+3235/XM550+5335
|
||
|
Megapixel
|
2592*1944 5MP, 2304*1296 3MP,1920*1080 2MP
|
||
|
Lens interface type
|
M12
|
||
|
Lens
|
3.6mm Fixed Lens
|
||
|
View angle
|
90 degrees |
||
|
Min.illumination
|
0.01 Lux / 0 Lux(IR on)
|
||
|
Day&Night mode
|
Auto IR-CUT
|
||
|
Night vision distance
|
4pcs Array Infrared LEDs or 4pcs White Supplement LEDs. 30M Night Vision
|
||
|
Video
|
Video compression
standard
|
H.265X/H.264 Main Profile/H.264 Baseline
|
|
|
Video streaming
|
Dual streaming
|
||
|
Video resolution
|
First stream: 5MP,3MP,2MP
|
||
|
JPEG stream :(Monitoring for mobile phones),
|
|||
|
720P(640×352), 720P(320×176)
|
|||
|
Video code rate
|
Supports constant bitrate/variable bitrate
|
||
|
Video frame rate
|
20fps(PAL 50HZ). 20fps(NTSC 60HZ)
|
||
|
Image settings
|
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
|
||
|
Image enhancement
|
Backlight compensation,Automatic white balance,
|
||
|
Digital WDR, 3D digital noise reduction
|
|||
|
Audio
|
Audio compression standard
|
G.726/G.711
|
|
|
Audio code rate
|
Rate adaptive
|
||
|
Audio Input
|
Support, Built-in Microphone
|
||
|
Audio Output
|
Support Two Way Audio Talk , Built-in Loud Speaker
|
||
|
Function
|
Motion detecting
|
Can set 4 independent detection region (1-100 sensitivity can be set)
|
|
|
Alarm linkage
|
Alarm send pictures to the specified mailbox,
|
||
|
alarm upload pictures and videos to the FTP server,
|
|||
|
alarm write pictures and videos to Micro SD card,
alarm message push
|
|||
|
Privacy mask
|
Maximum support 4 users to simultaneously browse
|
||
|
OSD
|
Support camera name, date and time information superimposed
|
||
|
User management
|
Supports user and rights management
|
||
|
Simultaneous viewers
|
maximum support 12 users to simultaneously browse
|
||
|
(each stream supports 4 users)
|
|||
|
Network protocol
|
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP |
||
|
DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
|
|||
|
Wifi
|
Not support Wifi
|
||
|
4G
|
4G standard
|
FDD-LTE
|
|
|
Frequency range
|
Africa,Europe,Asia Standrad: B1,B3,B7,B8,B20,B38,B40,B41, WCDMA B1,WCDMA B8.
America, South America, North America Standrad: B1,B2,B4,B12,B13,WCDMA B2,WCDMA B4,WCDMA B5.
Japan Standrad: B1,B3,B8,B18,B19,B26, TDD B41,WCDMA B1,WCDMA B6,WCDMA B19.
Ukraine Standrad: B3,B7.
|
||
|
Transmission rate
|
Upload max:50Mbps, download max: 150Mbps
|
||
|
Security
|
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
|
||
|
PTZ
|
Rotation angle
|
Horizon:0° to 330°. Vertical: 0° to 90°
|
|
|
Horizontal speed
|
1° to 40°/S
|
||
|
Vertical speed
|
1° to 20°/S
|
||
|
Preset
|
N/A
|
||
|
Interface
|
Power interface
|
1*5.5mm power interface
|
|
|
Ethernet
|
N/A
|
||
|
TF card Slot
|
1*TF card slot. up to 128G(Don’t included TF Card)
|
||
|
Reset button
|
Support
|
||
|
General
Specification
|
Power supply
|
DC 12V 2A
(Iclude) |
|
|
power
|
Day: 3W; Night: 12W
|
||
|
Operating temperature
|
-20 to +60 degree
|
||
|
Operating humidity
|
10% to 95%
|
||
|
Material
|
ABS Plastic Housing ,Outdoor Use,Waterproof IP66
|
||
|
Installation
|
Rack mounting
|
||
|

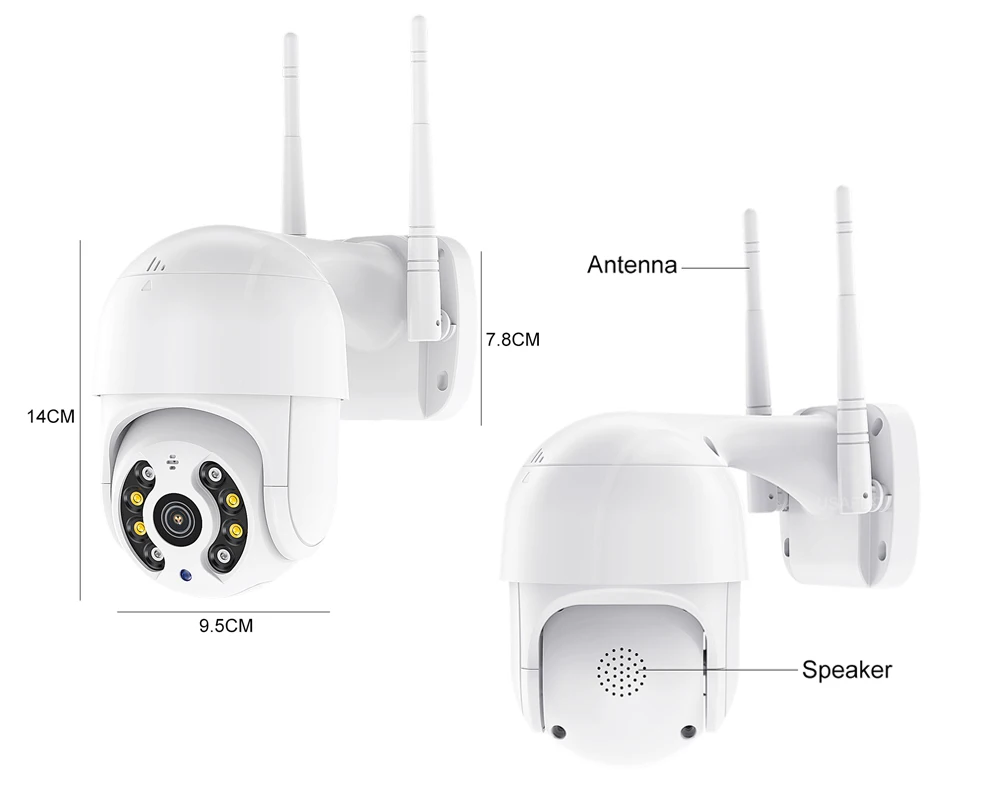

Size(W×D×H)(mm)
|
160*110*100mm
|
||
|
Weight(kg)
|
0.8kg
|
||
|
Package Size(W×D×H)(mm)
|
250*250*100mm
|
||
|
Package Weight(kg)
|
0.85kg
|
||
SKU Mean:
4G 1080P: 1PCS CAMERA +1PCS ADAPTER
4G 1080P 32GB: 1PCS CAMERA + 1PCS ADAPTER+1PCS 32GB CARD
4G 1080P 64GB: 1PCS CAMERA + 1PCS ADAPTER+1PCS 64GB CARD
4G 3MP: 1PCS CAMERA +1PCS ADAPTER
4G 3MP 32GB: 1PCS CAMERA + 1PCS ADAPTER+1PCS 32GB CARD
4G 3MP 64GB:1PCS CAMERA + 1PCS ADAPTER+1PCS 64GB CARD
4G 5MP: 1PCS CAMERA +1PCS ADAPTER
4G 5MP 32GB: 1PCS CAMERA + 1PCS ADAPTER+1PCS 32GB CARD
4G 5MP 64GB: 1PCS CAMERA + 1PCS ADAPTER+1PCS 64GB CARD
Item Detailed
VMS&www.xmeye.net Display
Rights Protection
1. 1-year warranty
2. 60-days of shipping protection time (90 days in Brazil)
3. This price is only the product price and shipping cost, excluding tariffs
How to receive the parcel without problem ?
When the item dispatch to your place, the first need to check weather have Severely deformed, if yes, You can take some photos and reject the parcel.
Then send the photos to us, we will help you make full refund first, then if you need, you can make a new order to us.
All the International mail allow receiver to check the parcel before receive it.
Shipping
Orders prcessed timely after the payment vrification within 1-3days, we only ship to confirmed order addresses.
If you do not receive your shipment within Delivery protection time, please contact us at firstly.
Warranty&Returns
12 months Manufacturer’s limited Warranty for defective items (excluding temns damaged and/or misused after recelpt).
Defective items must be reported and returned within the warranty period.
Feedback
We maintainhigh standards of excellence and strive for 100% customer satisfaction! Feedback is very imporant.
Please contact us before you give us neutral or negative feedback, so that we can address your concerns satisfactorily.
| Brand Name | USAFEQLO |
|---|---|
| Type | ip camera |
| Supported Operating Systems | Windows 8 |
| Lens (mm) | 3.6mm |
| Style | Dome Camera |
| Certification | NONE |
| Connectivity | 4g |
| Smart home platform | Other |
| Origin | CN(Origin) |
| Installation | Side |
| Wall Bracket | Side |
| Power Consumption(W) | 4W |
| Color | white |
| Minimum Illumination(Lux) | 0.4 |
| Sensor | CMOS |
| Megapixels | 5MP |
| Sensor Brand | SONY |
| Special Features | Waterproof / Weatherproof |
| Storage | None |
| Alarm Action | Local Alarm |
| Video Compression Format | H.265 |
| Power Supply | Normal |
| IR Distance(m) | 30 M |
| is_customized | Yes |
| Power Supply(V) | 12V |
| Model Number | USA-4G-A8 |
| Viewing Angle | 90° |
| Technology | Infrared |
| Dimensions (L x W x D)(mm) | Head/ 10×9.5cm |
| Supported Mobile Systems | iOS |
| Network Interface | 4g |
| Audio Output | None |
| High Definition | 5MP/3MP/1080P |
| Resolution | 2592×1944/2304×1296/1920×1080 |
| IR LED | 8 Array Leds |
| IR Cut Filter | Yes |
| Camera Shell | ABS(Waterproof/Weatherproof ) |
| Single | H.265X(Based on 264) |
| Rotation | Pan 330Degree, Tilt 100 Degree |
| 4G | Support |
| Audio | Support Two way audio |
| TF Card | Max support 128GB |
